Fly-Super8Pro H723 Klipper host
Edit me

Configuring and installing Klipper for USB

Compile Klipper firmware for usb

  • ssh to your klipper host console
  • cd to the klipper directory
    cd klipper
  • Run make clean
    make clean
  • Open menuconfig
    make menuconfig
  • Set the following settings
  • Enable extra Low Level configuration options : Checked
  • Micro Controller : STMicroelectronics STM32
  • Processor Model: STM32H723
  • Bootloader offset: 128 KiB bootloader
  • Clock Ref: 25 MHz crystal
  • Comm Interface - USB on PA11/PA12

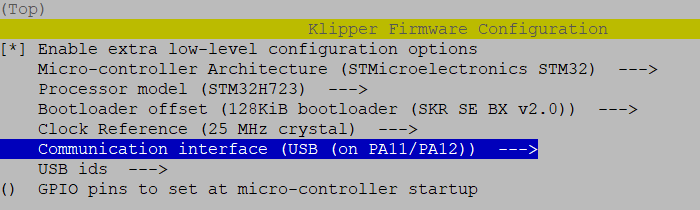

    Klipper Menu Config USB
    Klipper Menu Config USB
  • Quit and save the configuration

  • Run Make to compile the firmware
make -j4

Flash Klipper USB firmware with katapult over USB

  • Find the Serial ID
    ls /dev/serial/by-id/
  • Copy the ID containing ‘STM32H723’ and make a note of it for use in your printer.cfg.

  • Run the make flash command to flash the firmware
    make flash FLASH_DEVICE= {Your serial ID here }
  • Example
    make flash FLASH_DEVICE=/dev/serial/by-id/usb-katapult_stm32f407xb_170038000650314D35323820-if00
Burn Klipper firmware over USB
Burn Klipper firmware over USB
  • Your Fly-Super8Pro H723 should now have klipper firmware loaded and be ready to use.
